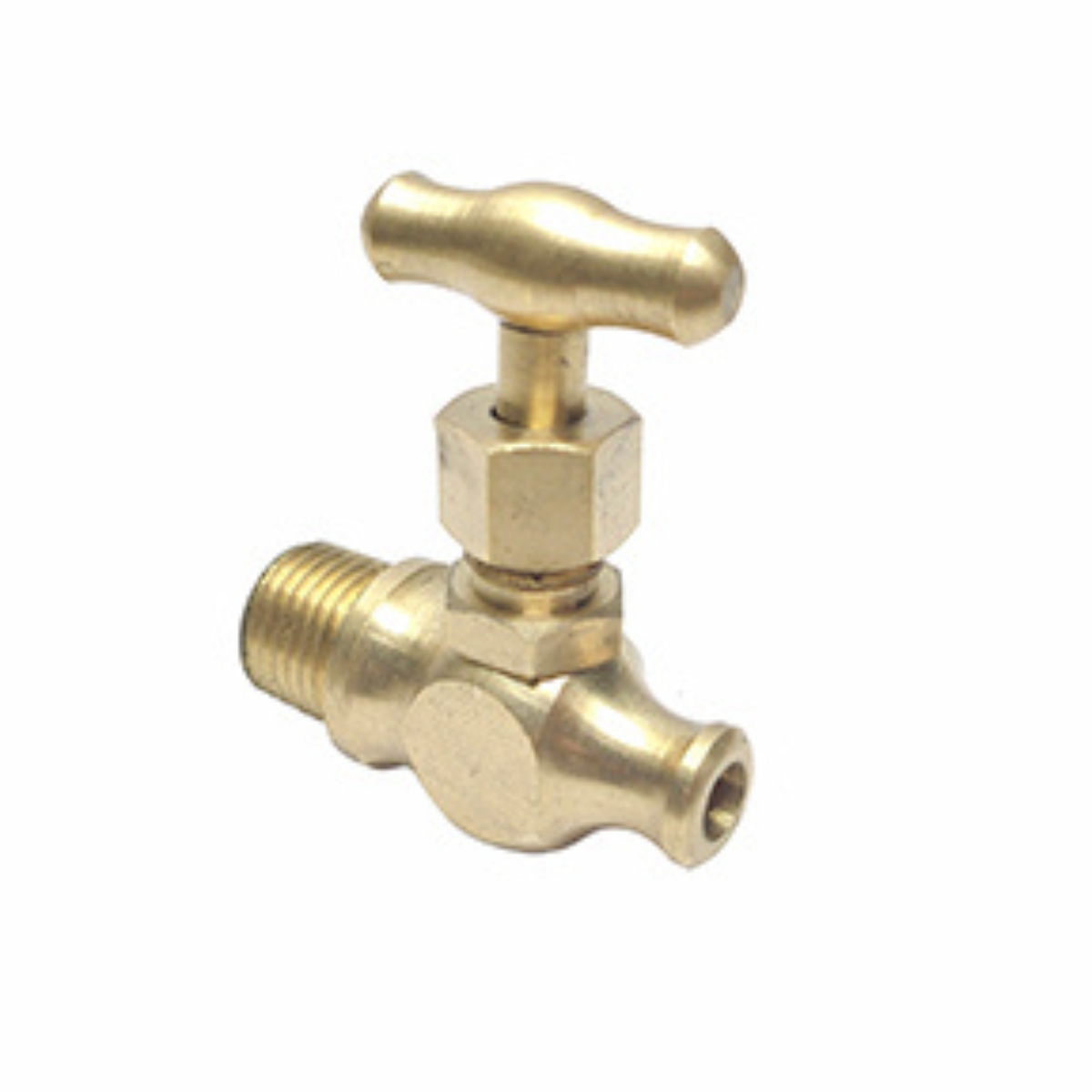

1/4" MPT x Drain Needle Valve Stopcock

Ball Valves>Needle Valves>1/4" MPT x Drain Needle Valve Stopcock

1/4" MPT x Drain Needle Valve Stopcock

Product #: MCNV-25MD

Weight: 0.15

Description

    Needle valves are used to adjust flow in small increments for metering and sampling and other applications which require fine flow control. Needle valves are ideal for instrumentation and laboratory applications.

    The flow is controlled by lowering and raising the needle shaped plunger which fits into a seat. It takes several turns of the fine threaded screw to seal the valve making regulation of the flow rate possible down to a few drops per minute.

  • Maximum Pressure for Water, Oil, Air and Inert Gas 500 psi@212 F
  • Temperature Range: -20 F to 550 F
  • Material Bronze Body/Rubber Sealing
  • OSHA Compliant
  • ISO Registered Factory
  • MSS SP-110 Approved
  • RoHS Compliant

California residents: Click here for Proposition 65 warning.

Additional Information:
